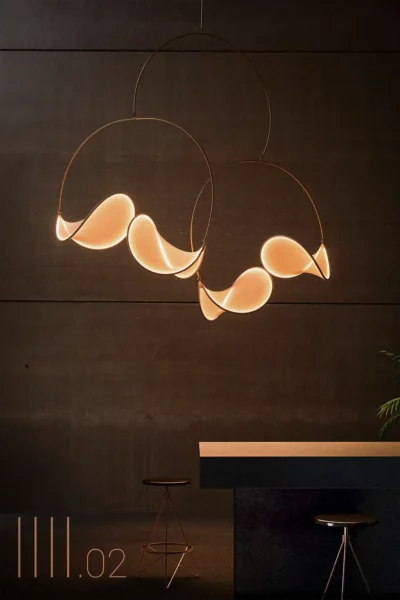

llll.02 — Organic Sculptural LED Light in Stretched Fabric
A handcrafted sculptural LED light made from stretched fabric and untreated brass. Available as single, double, or modular chandelier compositions in white or gold. Designed for architectural and interior design projects.
This brass is not only visually appealing but also highly resistant to corrosion. The presence of any irregularities highlights the artisan work in its creation.
Over time, brass may acquire a natural patina as it oxidizes, though regular cleaning can decelerate this aging process.
The lamp can be hung individually or paired with another to achieve a delicate balance.

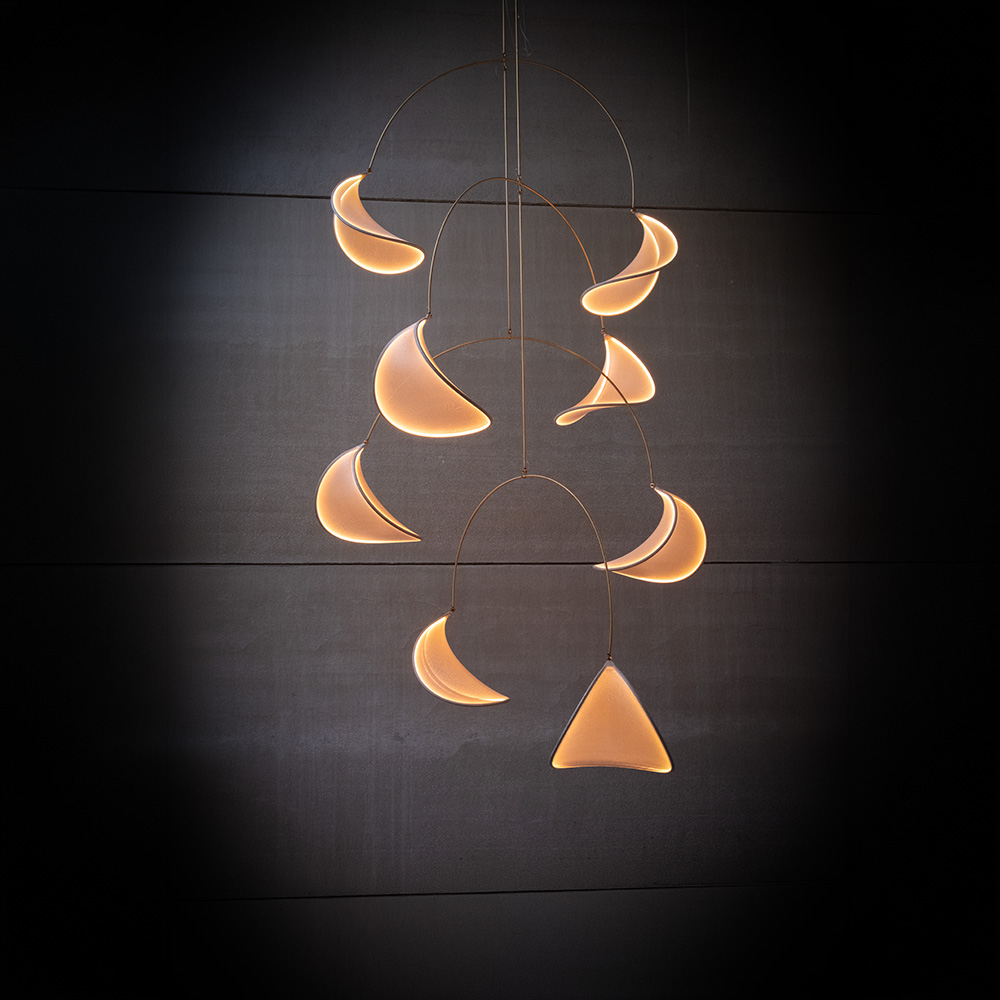

Additional lights can be added to form more expansive chandelier configurations.
Each element is connected with a hinge that enables the transfer of voltage. The negative (-) voltage runs on the outside of the tube, while the positive (+) voltage runs on the inside and through the hinge itself. When connecting separate elements with the hinge, the positive voltage is seamlessly transferred. To ensure the negative power connectivity, all separate parts must be connected with a short cable, then securely fastened using the brass connector.
llll.02.3 — Single White (2700K)
A curved LED profile wrapped in two layers of white knitted fabric creates a soft, organic suspended light. The semi‑transparent textile reveals the silhouette of the frame, giving the piece a sense of weightlessness. Warm 2700K LEDs illuminate the fabric from the edges, producing an even, diffused glow ideal for calm residential or hospitality spaces. Hung from an untreated brass arch, the lamp introduces a subtle sculptural presence without dominating the room.

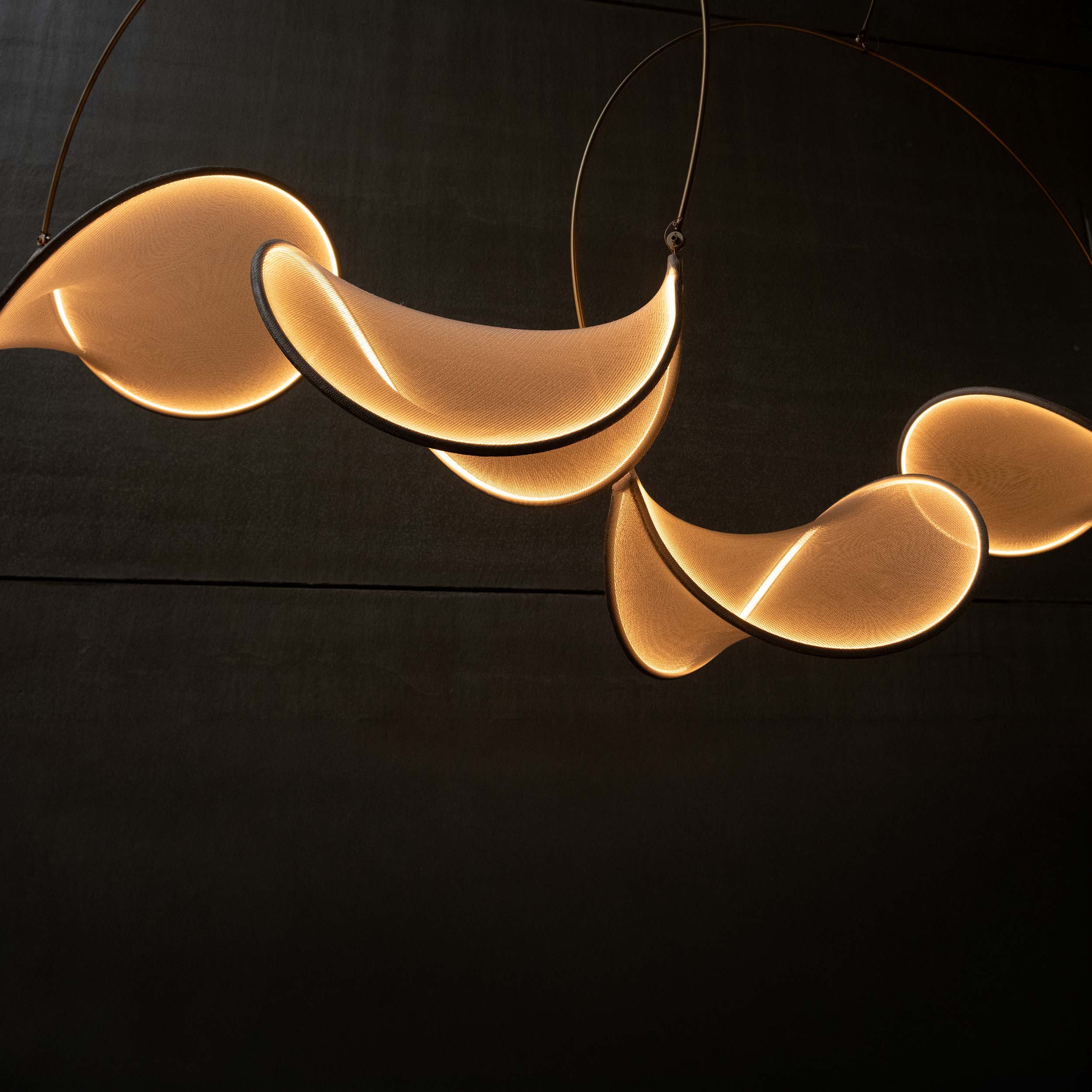

llll.02.4 — Single Gold (2300K)
This version pairs the same organic form with a fabric blend that carries a gentle golden sheen. The 2300K LEDs enrich the textile’s warm tone, creating a deeper, more atmospheric radiance. The untreated brass suspension adds a natural yellow‑gold accent that will develop a soft patina over time. A refined choice for intimate interiors, restaurants, or spaces seeking a warm sculptural focal point.
llll.02.7 — Double White (2700K)
Two white fabric elements are suspended in a balanced composition, forming a light sculpture with shifting perspectives. The knitted textile maintains its airy transparency, while the 2700K LEDs deliver a clean, warm illumination. The double configuration suits larger rooms, long tables, or architectural spaces where a single element would feel too modest.
llll.02.8 — Double Gold (2300K)
The double gold version introduces a richer, more ambient light quality. The golden textile and 2300K LEDs create a warm, enveloping glow, while the paired elements form a gentle, floating rhythm.
llll.02.9 — Chandelier, 4 Elements White (2700K)
Four white fabric elements connect through brass hinges to form a larger suspended composition. The transparency of the textile keeps the structure visually light, while the 2700K LEDs ensure a consistent, soft illumination across all elements. This configuration works beautifully in double‑height spaces, stairwells, or generous living areas.
llll.02.10 — Chandelier, 4 Elements Gold (2300K)
The most atmospheric version of the series, combining four golden fabric elements with warm 2300K LEDs. The result is a sculptural chandelier with a gentle, glowing presence. The untreated brass structure adds a refined material contrast and will age naturally over time. A strong choice for hospitality interiors, lobbies, or spaces seeking a warm, organic centrepiece.
more
The light fixture has a diameter of approximately 60 cm, with a brass arch measuring 150 cm in both length and width. The height is fixed, but additional rods of 20, 40, or 60 cm can be added if extra height is needed. These rods are not included and must be requested separately if required.
Dimensions
| llll.02.3 | single | white | 2700k | 60/60/60cm | ||||
| llll.02.4 | single | gold | 2300k | 60/60/60cm | ||||
| llll.02.7 | double | white | 2700k | 150/150/60cm | ||||
| llll.02.8 | double | gold | 2300k | 150/150/60cm | ||||
| llll.02.9 | chandelier 4 elements | white | 2700k | 300/150/150cm | ||||
| llll.02.10 | chandelier 4 elements | gold | 2300k | 300/150/150cm | ||||

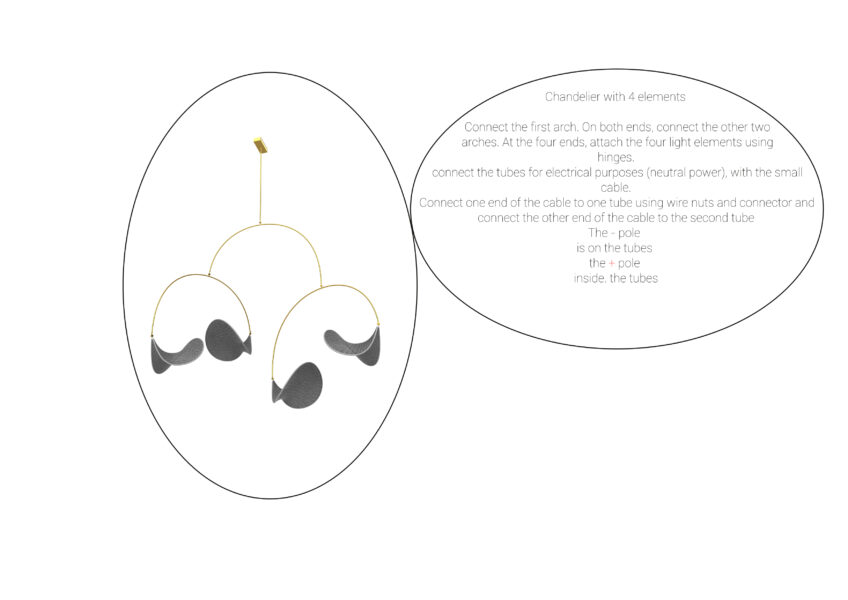

installation instructions
fixate the position
Tighten the hinge as hard as possible using 2 wrenches if necessary.
technical sheets
dimmers and drivers
The LED lightings can have dimmable functions, allowing you to adjust brightness.
However their internal electrical circuitry doesn’t interpret the wall dimmer signal. Which works for traditional incandescent bulbs only. LED strips don’t connect directly to 120V/220V AC wall sockets. They need a power supply to convert AC into lower 24V DC voltage.
For small projects that consist of just a single power supply, you’ll need the simpler PWM or TRIAC dimmers
DALI, 0-10v, and DMX LED dimmers can manage multiple zones.
PWM Dimming
or “pulse width modulation” is a digital signal that “talks” to your strip’s power supply to adjust brightness. You can install a DC PWM dimmer between a standard, non dimmable power supply and the LED strip.
The power supply can be any standard DC power unit and does not need to be dimmable.
Compared to TRIAC dimmable power supplies, these cost cheaper and are readily available. This simple circuit design works well for portable installations where you don’t have to build a dimmer into a wall. DC PWM dimmers are very simple to assemble, easily connecting to the power supply and LED strip.
There are different PWM dimmers available:
RF Dimming provides a remote way to adjust your strip brightness.
Unlike the wired inline LED dimmers, you can dim the led strip by remote control, the distance can get as far as 20 meters in diameter.
WIFI Dimming
A smart dimmer allows you to control your LEDs remotely via a WiFi connection. When setting up a “smart” home or office lighting system, these dimmers are necessary.
You can operate the dimming by using a mobile app. This feature lets you adjust brightness using Alexa or Google Assistant voice controls.
Triac Dimming
Triac dimmer change 120V/220V AC to 12/24V DC signal for led strip lights., and Interpret dimming signals produced by the Triac dimmer and then translate that into the LED strip’s output.
You’ll need to connect the TRIAC dimmer to the dimmable power supply, then link the power supply’s output to the LED strip.
To avoid voltage drops, ensure that your power unit stays close to your strip lights.
1-10V Dimming
0-10V dimming lets you adjust brightness by altering DC voltage powering your strips.
It can vary voltage between zero and ten volts – zero being “off” and ten at 100% brightness output.
This method lets you link as many dimming receivers as your project requires. This means you’ll be able to manipulate many dimmable LED lights simultaneously.
DALI Dimming
DALI dimming is a step further from the 0-10V system. Like the 0-10V, this dimmer allows you to adjust many LED strips over a wide area using a central controller.
This method also allows individual users to adjust brightness for specific zones using smaller LED dimmers.
This setup makes for a convenient way to adjust brightness without going all the way to the main switch. Like its 0-10V predecessor, you’ll have to wire it between the dimmable strips and the transformer.
DMX Dimming
“DMX 512” also works by regulating voltage in the transformer to reduce brightness.
Despite being an old dimming method, DMX is still used today. Applications include large-scale installations, such as concerts, theatre, and other performance venue lighting. This method allows for independent control of different areas of the lighting project. It can run up to 512 DMX receivers, also called channels.
Surge wattage occurs when you turn on other electrical appliances in your home. The wirings on these appliances create a resistance in the home’s electricity. This sudden change causes a voltage drop in your LED lights.
Surge wattage dimming becomes noticeable when you set your LEDs on low brightness. If your brightness is high, you’ll rarely experience flickering.
| llll.02.3 | single | white | 2700k | 60/60/60cm | ||||
| llll.02.4 | single | gold | 2300k | 60/60/60cm | ||||
| llll.02.7 | double | white | 2700k | 150/150/60cm | ||||
| llll.02.8 | double | gold | 2300k | 150/150/60cm | ||||
| llll.02.9 | chandelier 4 elements | white | 2700k | 300/150/150cm | ||||
| llll.02.10 | chandelier 4 elements | gold | 2300k | 300/150/150cm | ||||
The LED lightings can have dimmable functions, allowing you to adjust brightness.
However their internal electrical circuitry doesn’t interpret the wall dimmer signal. Which works for traditional incandescent bulbs only. LED strips don’t connect directly to 120V/220V AC wall sockets. They need a power supply to convert AC into lower 24V DC voltage.
For small projects that consist of just a single power supply, you’ll need the simpler PWM or TRIAC dimmers
DALI, 0-10v, and DMX LED dimmers can manage multiple zones.
PWM Dimming
or “pulse width modulation” is a digital signal that “talks” to your strip’s power supply to adjust brightness. You can install a DC PWM dimmer between a standard, non dimmable power supply and the LED strip.
The power supply can be any standard DC power unit and does not need to be dimmable.
Compared to TRIAC dimmable power supplies, these cost cheaper and are readily available. This simple circuit design works well for portable installations where you don’t have to build a dimmer into a wall. DC PWM dimmers are very simple to assemble, easily connecting to the power supply and LED strip.
There are different PWM dimmers available:
RF Dimming provides a remote way to adjust your strip brightness.
Unlike the wired inline LED dimmers, you can dim the led strip by remote control, the distance can get as far as 20 meters in diameter.
WIFI Dimming
A smart dimmer allows you to control your LEDs remotely via a WiFi connection. When setting up a “smart” home or office lighting system, these dimmers are necessary.
You can operate the dimming by using a mobile app. This feature lets you adjust brightness using Alexa or Google Assistant voice controls.
Triac Dimming
Triac dimmer change 120V/220V AC to 12/24V DC signal for led strip lights., and Interpret dimming signals produced by the Triac dimmer and then translate that into the LED strip’s output.
You’ll need to connect the TRIAC dimmer to the dimmable power supply, then link the power supply’s output to the LED strip.
To avoid voltage drops, ensure that your power unit stays close to your strip lights.
1-10V Dimming
0-10V dimming lets you adjust brightness by altering DC voltage powering your strips.
It can vary voltage between zero and ten volts – zero being “off” and ten at 100% brightness output.
This method lets you link as many dimming receivers as your project requires. This means you’ll be able to manipulate many dimmable LED lights simultaneously.
DALI Dimming
DALI dimming is a step further from the 0-10V system. Like the 0-10V, this dimmer allows you to adjust many LED strips over a wide area using a central controller.
This method also allows individual users to adjust brightness for specific zones using smaller LED dimmers.
This setup makes for a convenient way to adjust brightness without going all the way to the main switch. Like its 0-10V predecessor, you’ll have to wire it between the dimmable strips and the transformer.
DMX Dimming
“DMX 512” also works by regulating voltage in the transformer to reduce brightness.
Despite being an old dimming method, DMX is still used today. Applications include large-scale installations, such as concerts, theatre, and other performance venue lighting. This method allows for independent control of different areas of the lighting project. It can run up to 512 DMX receivers, also called channels.
Surge wattage occurs when you turn on other electrical appliances in your home. The wirings on these appliances create a resistance in the home’s electricity. This sudden change causes a voltage drop in your LED lights.
Surge wattage dimming becomes noticeable when you set your LEDs on low brightness. If your brightness is high, you’ll rarely experience flickering.
canopy or rosette
Canopy or rosette?
All lights require a 24V DC constant driver.
It can be installed either in a canopy on the ceiling or remotely.
The canopy may be white, black, or brass. When the driver is placed remotely, a round ceiling cap will suffice.
more about the fabric
The fabric is a knitted blend of half polyester half stainless steel.
The fabric options include a plain white/silver variant (right in the image above) or a with a golden sheen (left).
A warm white LED strip, embedded within the frame, lights the lamp from the edges, casting an even, soft radiance throughout.
The “white” fabric features a 2700K LED color, whereas the “gold” achieves its golden glow partially from the 2300K LEDs and partially from the fabric color.
The stainless steel ensures the fabric’s durability and ease of maintenance. Minor irregularities in the pattern and colour of the fabric are intrinsic to the knitting process.
The fabric can be cleaned with a vacuum cleaner and a mild textile cleaner.
For any question or price request
