llll.09
llll.09 — a modular minimal‑surface element for grouped compositions

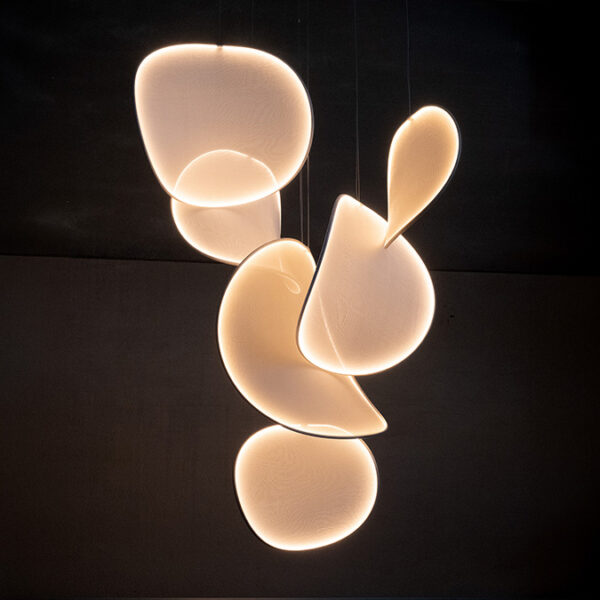

llll.09 is part of our sculptural LED lighting collection. It is designed as a modular lighting element that performs exceptionally well in grouped installations. Unlike the more singular, gesture‑based models in the collection, llll.09 is conceived as a repeatable unit — a minimal‑surface volume that gains spatial richness when arranged in multiples.
The lamp is available in three dimensions: 80 cm, 100 cm, and 120 cm, allowing designers to build compositions with subtle scale shifts or rhythmic repetition. Each size maintains the same structural logic: a hand‑formed metal profile defining the perimeter, with a tensioned knitted membrane (50% polyester, 50% stainless steel) stretched into a soft, translucent surface.

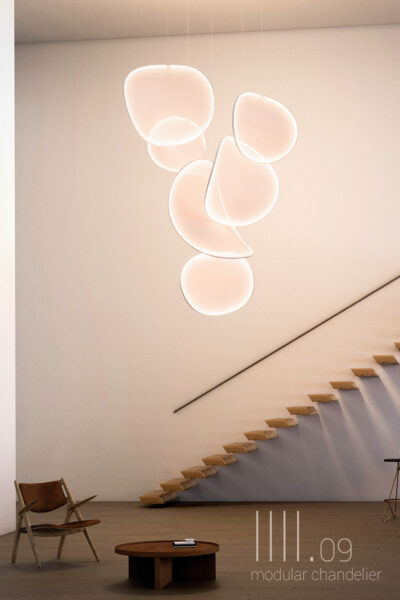

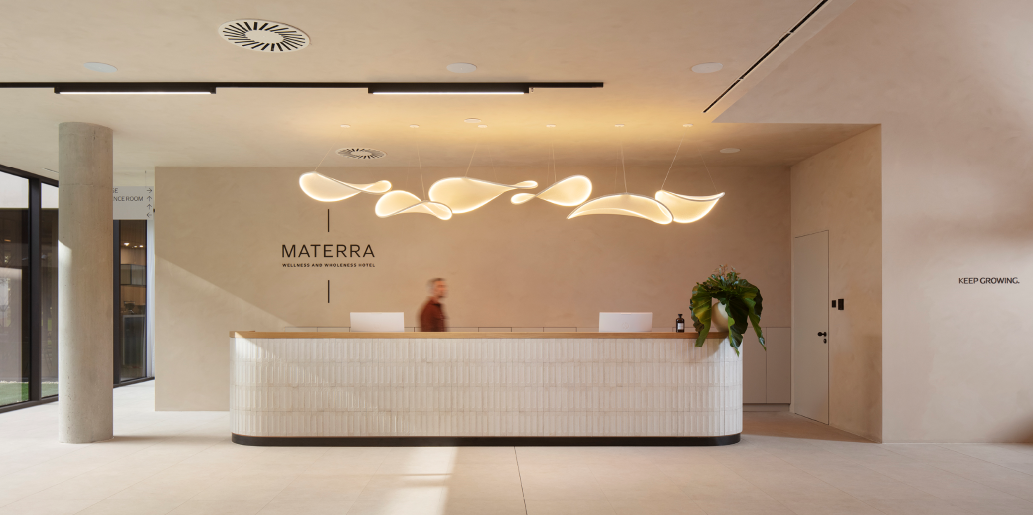

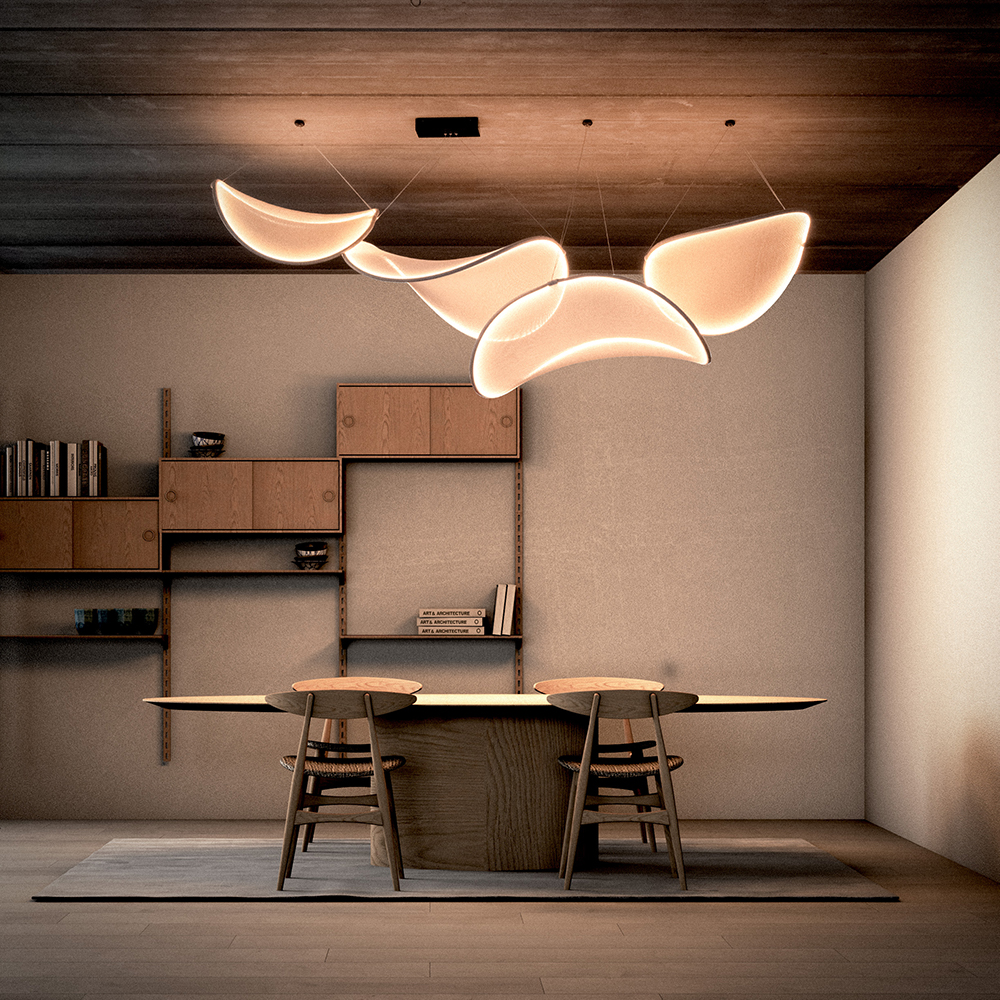

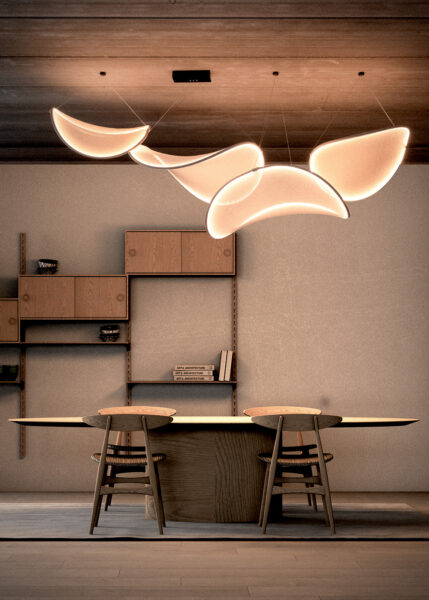

The lamp can be suspended vertically to create slender, elongated volumes, or horizontally for a broader, more expansive presence. This flexibility makes it suitable for a wide range of architectural contexts — from tall stairwells and atriums to long dining tables, reception desks, and open‑plan interiors.

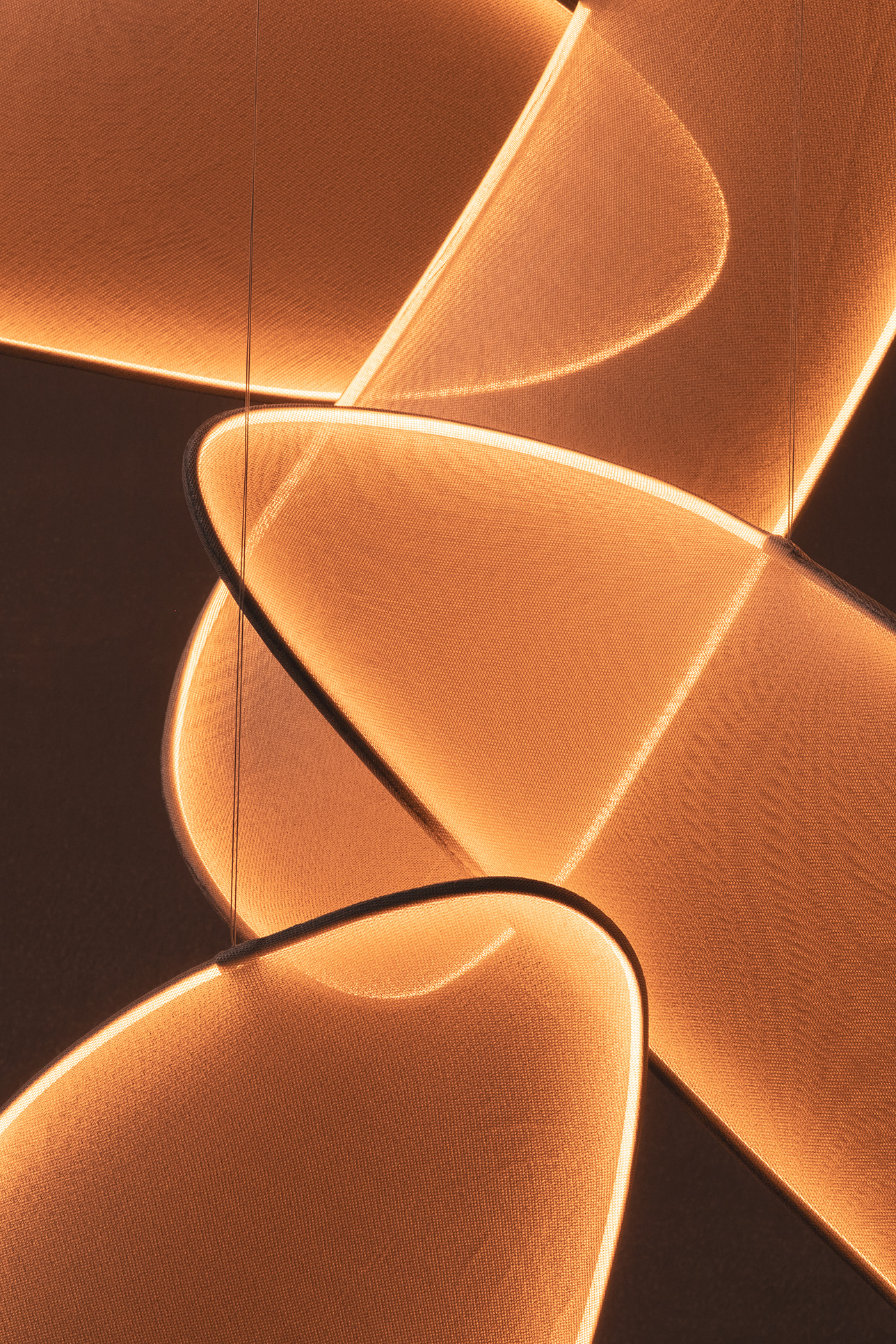

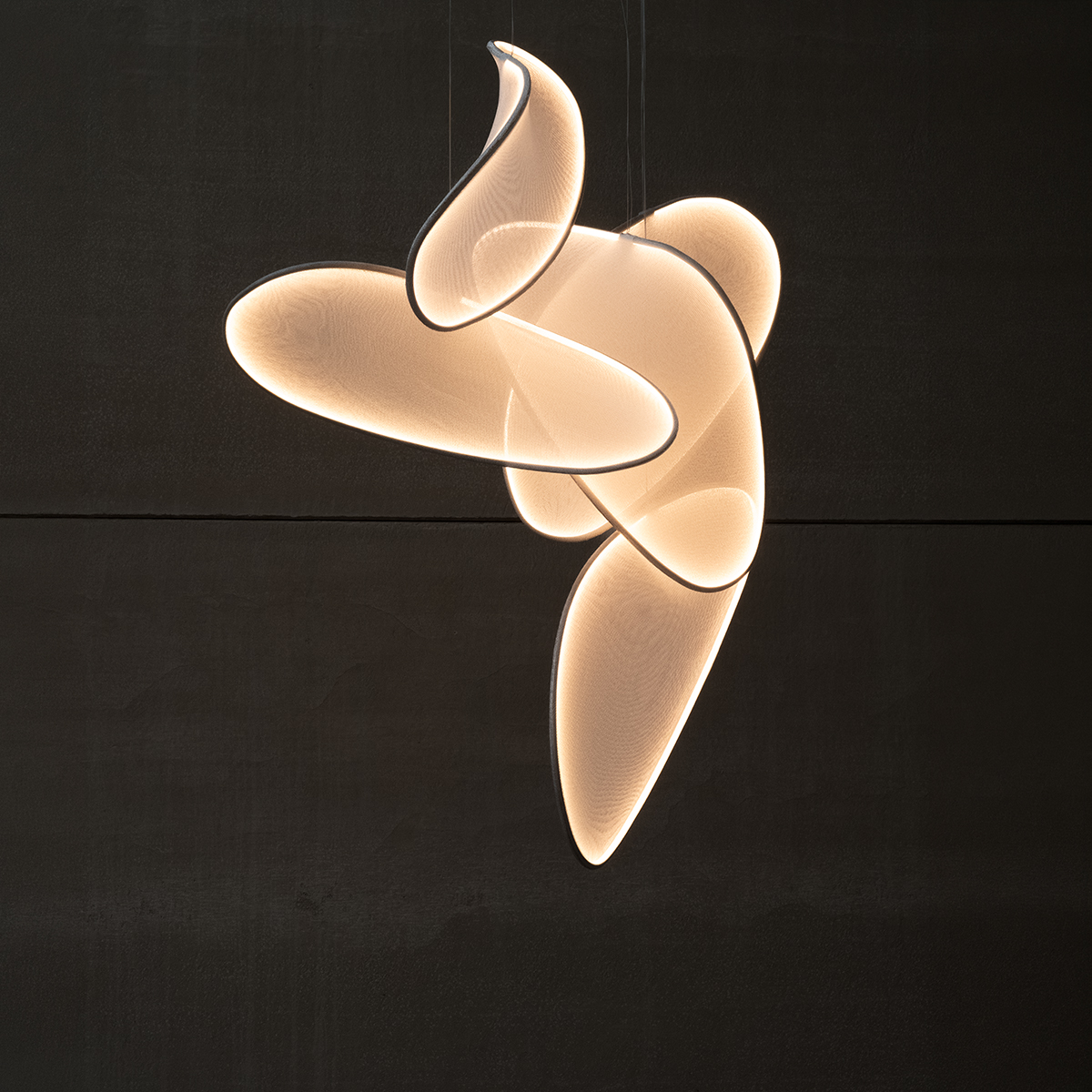

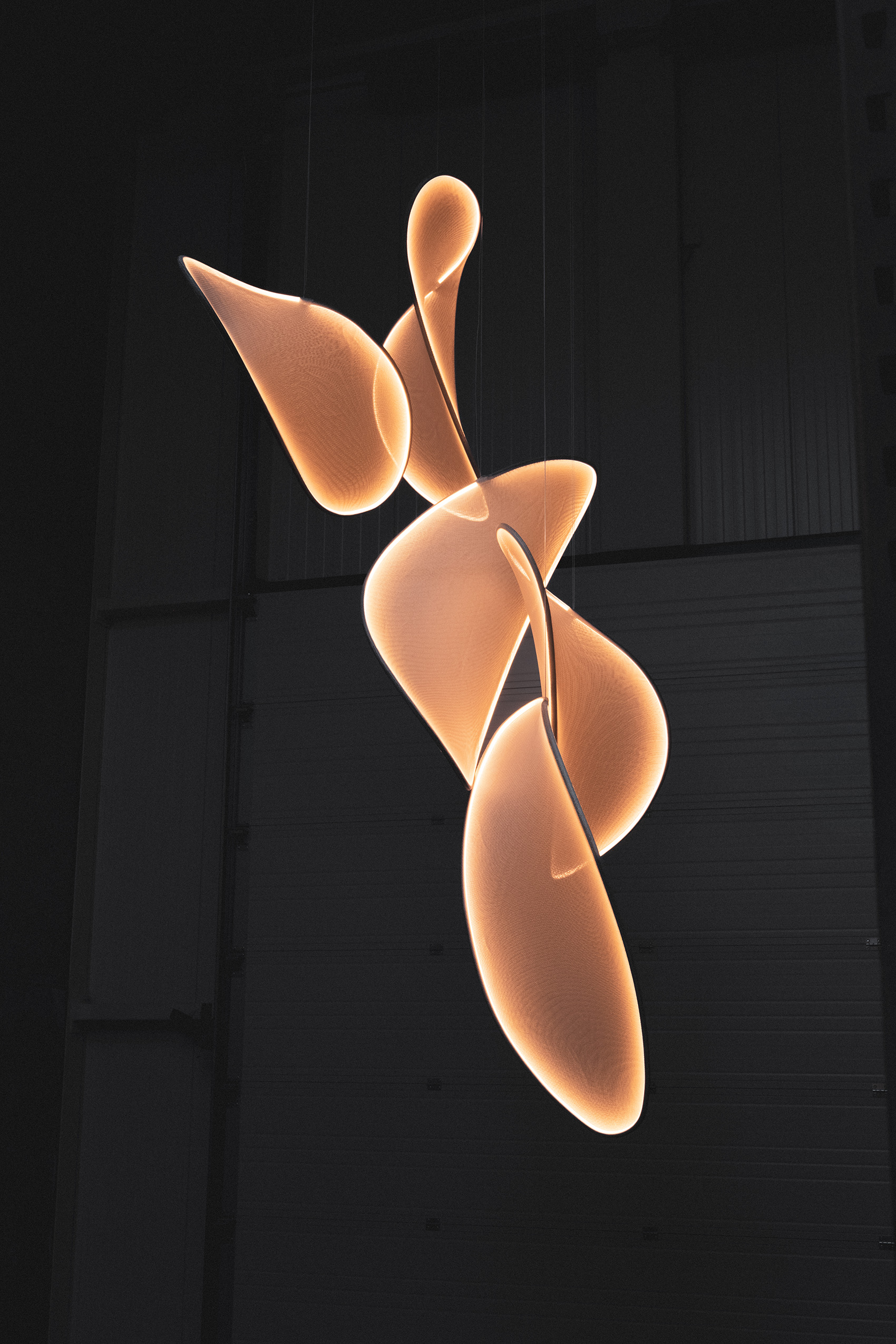

When installed in clusters, the overlapping curves and layered textiles generate a dynamic interplay of lines and moiré patterns. The lamps appear to shift and breathe with the viewer’s movement, creating a sense of quiet motion without visual noise.
A warm white LED strip is integrated along the inner edge of the frame, producing uniform edge‑lighting that fills the volume with a soft, ambient glow.
- The white/silver textile is paired with a 2700K LED for a neutral warm tone.
- The gold‑toned textile combines a 2300K LED with the fabric’s warm tint, resulting in a deeper, atmospheric light.
Despite their delicate appearance, the lamps are lightweight, durable, and easy to maintain. The stainless steel fibres ensure long‑term tension stability, while the textile can be cleaned with a vacuum cleaner on low suction and a mild textile cleaner.
For architects and designers, llll.09 offers a versatile building block — a sculptural, glare‑free lighting element that can be composed into linear sequences, vertical cascades, or spatial clusters, adapting effortlessly to the scale and geometry of the project.
Suspension and mounting options
The vertical and horizontal configurations of llll.09 are suspended using fine, current‑carrying steel cables. These cables serve a dual purpose:
- structural support, keeping the lamp visually weightless and precisely aligned
- electrical conduction, eliminating the need for visible wiring and preserving the purity of the form
The result is a clean, minimal installation where the lamp appears to float, with no visual interruption between the ceiling and the textile volume.

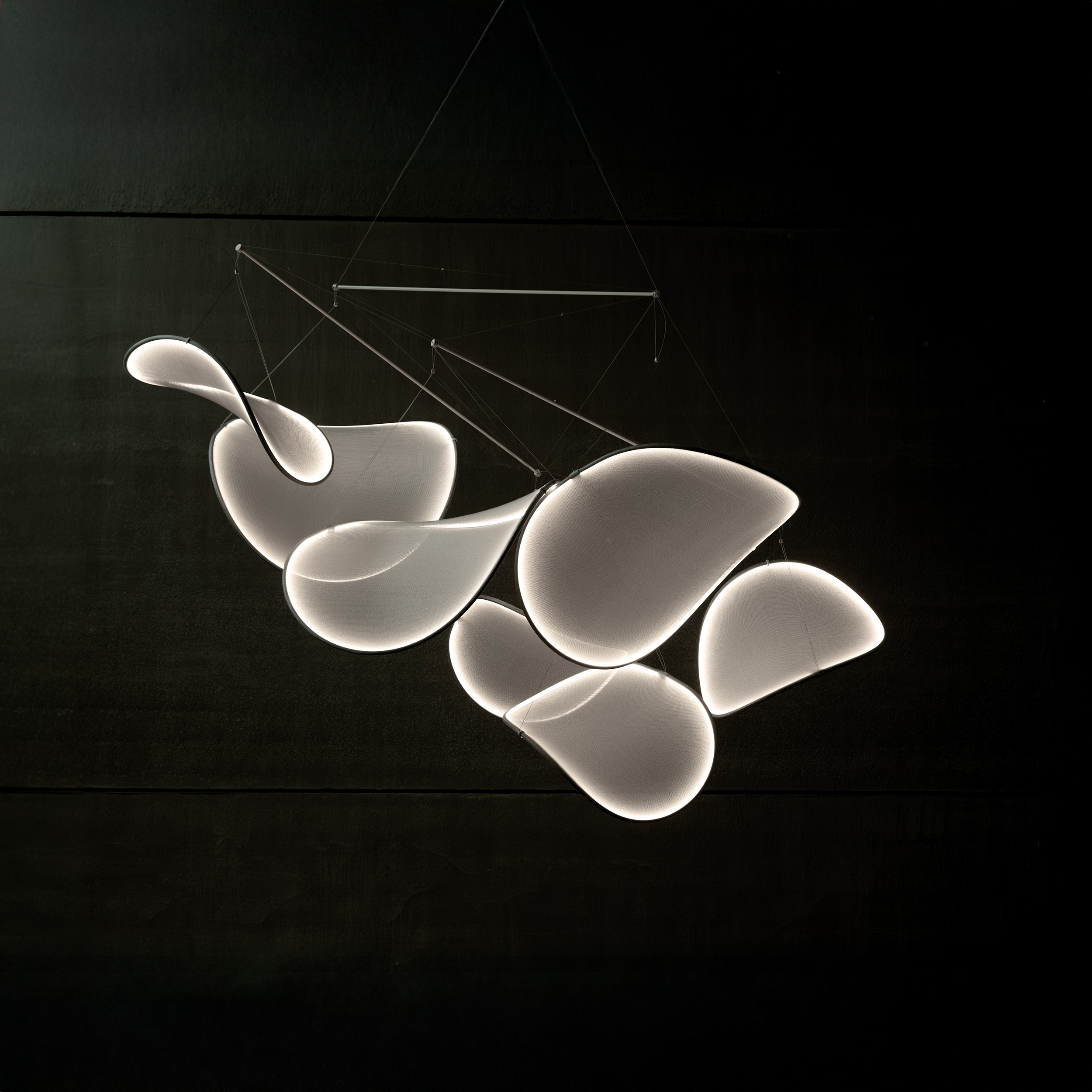

Chandelier structure option
For larger compositions, llll.09 can also be mounted on a dedicated chandelier structure. This new system acts as a central architectural spine that carries multiple elements at once. It offers several advantages for designers:
Consolidated power feed
All elements are powered through the chandelier structure, simplifying electrical planning and reducing the number of ceiling connection points.Precise spatial organisation
The structure allows the lamps to be arranged in controlled geometries — linear sequences, radial clusters, staggered heights, or layered fields — while maintaining perfect alignment.Visual coherence
The structure becomes a subtle architectural element that unifies the composition, while the lamps themselves retain their lightness and organic presence.
Whether suspended individually on fine steel cables or grouped on the chandelier structure, llll.09 maintains its characteristic sense of buoyancy, softness, and minimal‑surface geometry — but the mounting system gives architects full control over scale, rhythm, and spatial impact.
I
element sizes
| llll.09.1 | white/2700K | 80/60/20 cm | |
| llll.09.2 | gold/2300k | 80/60/20 cm | |
| llll.09.3 | white/2700K | 100/80/30 cm | |
| llll.09.4 | gold/2300k | 100/80/30 cm | |
| llll.09.5 | white/2700K | 120/100/40 cm | |
| llll.09.6 | gold/2300k | 120/100/40 cm | |
technical sheets
installation guidelines
24Vdc CV dimmers and drivers
The LED lightings can have dimmable functions, allowing you to adjust brightness.
However their internal electrical circuitry doesn’t interpret the wall dimmer signal. Which works for traditional incandescent bulbs only. LED strips don’t connect directly to 120V/220V AC wall sockets. They need a power supply to convert AC into lower 24V DC voltage.
For small projects that consist of just a single power supply, you’ll need the simpler PWM or TRIAC dimmers
DALI, 0-10v, and DMX LED dimmers can manage multiple zones.
PWM Dimming
or “pulse width modulation” is a digital signal that “talks” to your strip’s power supply to adjust brightness. You can install a DC PWM dimmer between a standard, non dimmable power supply and the LED strip.
The power supply can be any standard DC power unit and does not need to be dimmable.
Compared to TRIAC dimmable power supplies, these cost cheaper and are readily available. This simple circuit design works well for portable installations where you don’t have to build a dimmer into a wall. DC PWM dimmers are very simple to assemble, easily connecting to the power supply and LED strip.
There are different PWM dimmers available:
RF Dimming provides a remote way to adjust your strip brightness.
Unlike the wired inline LED dimmers, you can dim the led strip by remote control, the distance can get as far as 20 meters in diameter.
WIFI Dimming
A smart dimmer allows you to control your LEDs remotely via a WiFi connection. When setting up a “smart” home or office lighting system, these dimmers are necessary.
You can operate the dimming by using a mobile app. This feature lets you adjust brightness using Alexa or Google Assistant voice controls.
Triac Dimming
Triac dimmer change 120V/220V AC to 12/24V DC signal for led strip lights., and Interpret dimming signals produced by the Triac dimmer and then translate that into the LED strip’s output.
You’ll need to connect the TRIAC dimmer to the dimmable power supply, then link the power supply’s output to the LED strip.
To avoid voltage drops, ensure that your power unit stays close to your strip lights.
1-10V Dimming
0-10V dimming lets you adjust brightness by altering DC voltage powering your strips.
It can vary voltage between zero and ten volts – zero being “off” and ten at 100% brightness output.
This method lets you link as many dimming receivers as your project requires. This means you’ll be able to manipulate many dimmable LED lights simultaneously.
DALI Dimming
DALI dimming is a step further from the 0-10V system. Like the 0-10V, this dimmer allows you to adjust many LED strips over a wide area using a central controller.
This method also allows individual users to adjust brightness for specific zones using smaller LED dimmers.
This setup makes for a convenient way to adjust brightness without going all the way to the main switch. Like its 0-10V predecessor, you’ll have to wire it between the dimmable strips and the transformer.
DMX Dimming
“DMX 512” also works by regulating voltage in the transformer to reduce brightness.
Despite being an old dimming method, DMX is still used today. Applications include large-scale installations, such as concerts, theatre, and other performance venue lighting. This method allows for independent control of different areas of the lighting project. It can run up to 512 DMX receivers, also called channels.
Surge wattage occurs when you turn on other electrical appliances in your home. The wirings on these appliances create a resistance in the home’s electricity. This sudden change causes a voltage drop in your LED lights.
Surge wattage dimming becomes noticeable when you set your LEDs on low brightness. If your brightness is high, you’ll rarely experience flickering.

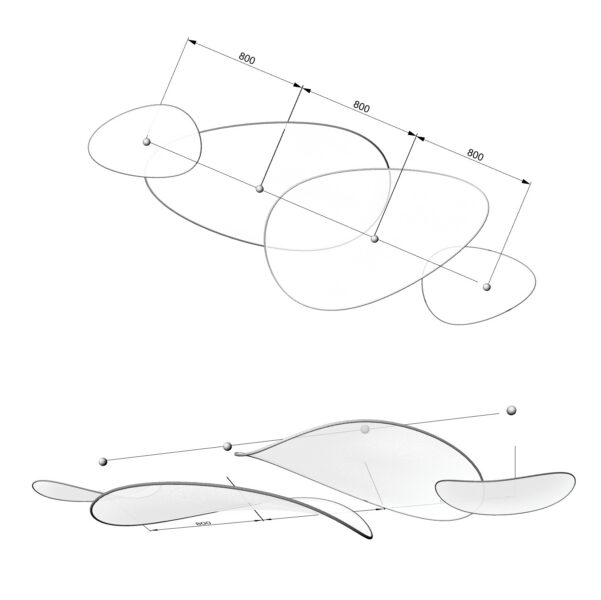

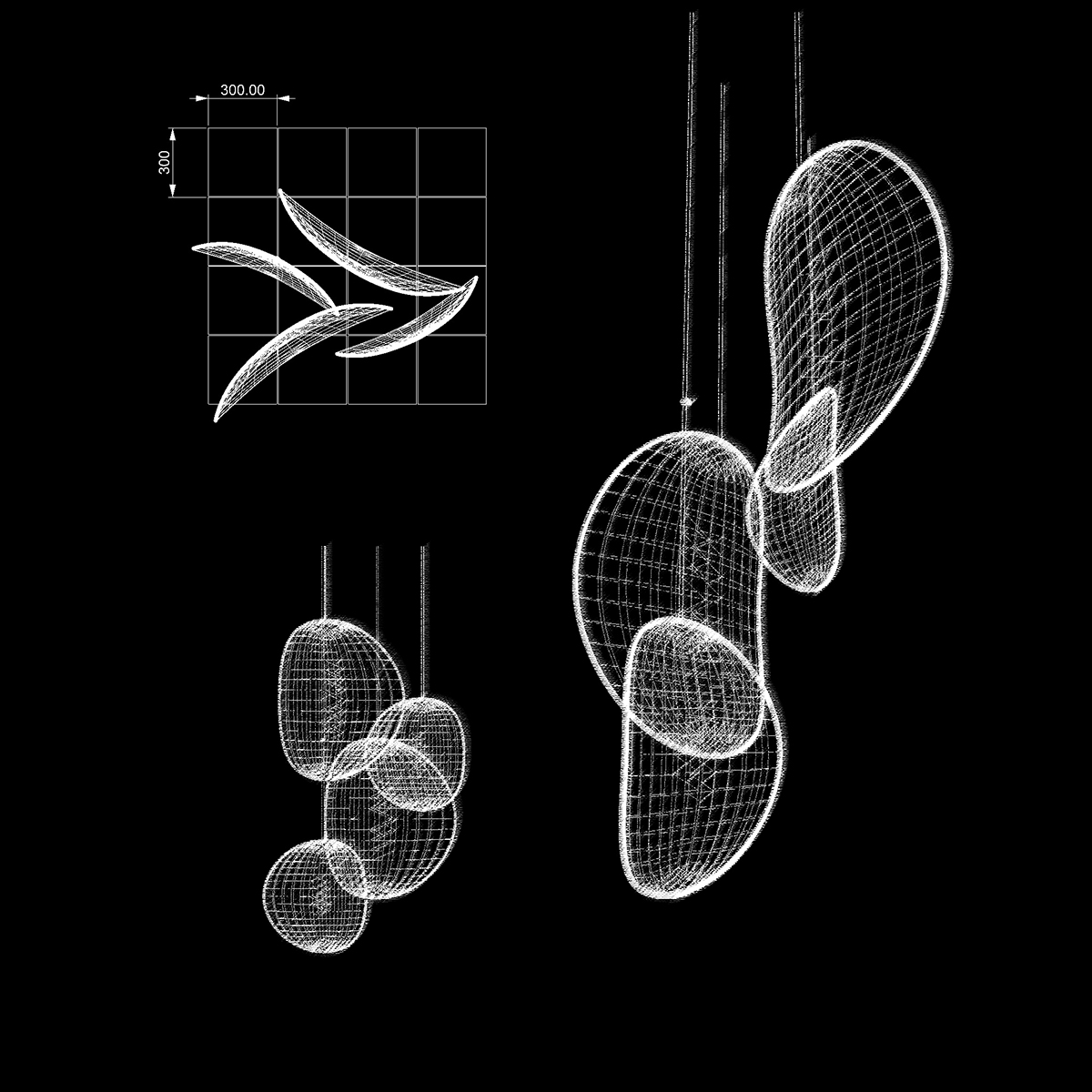

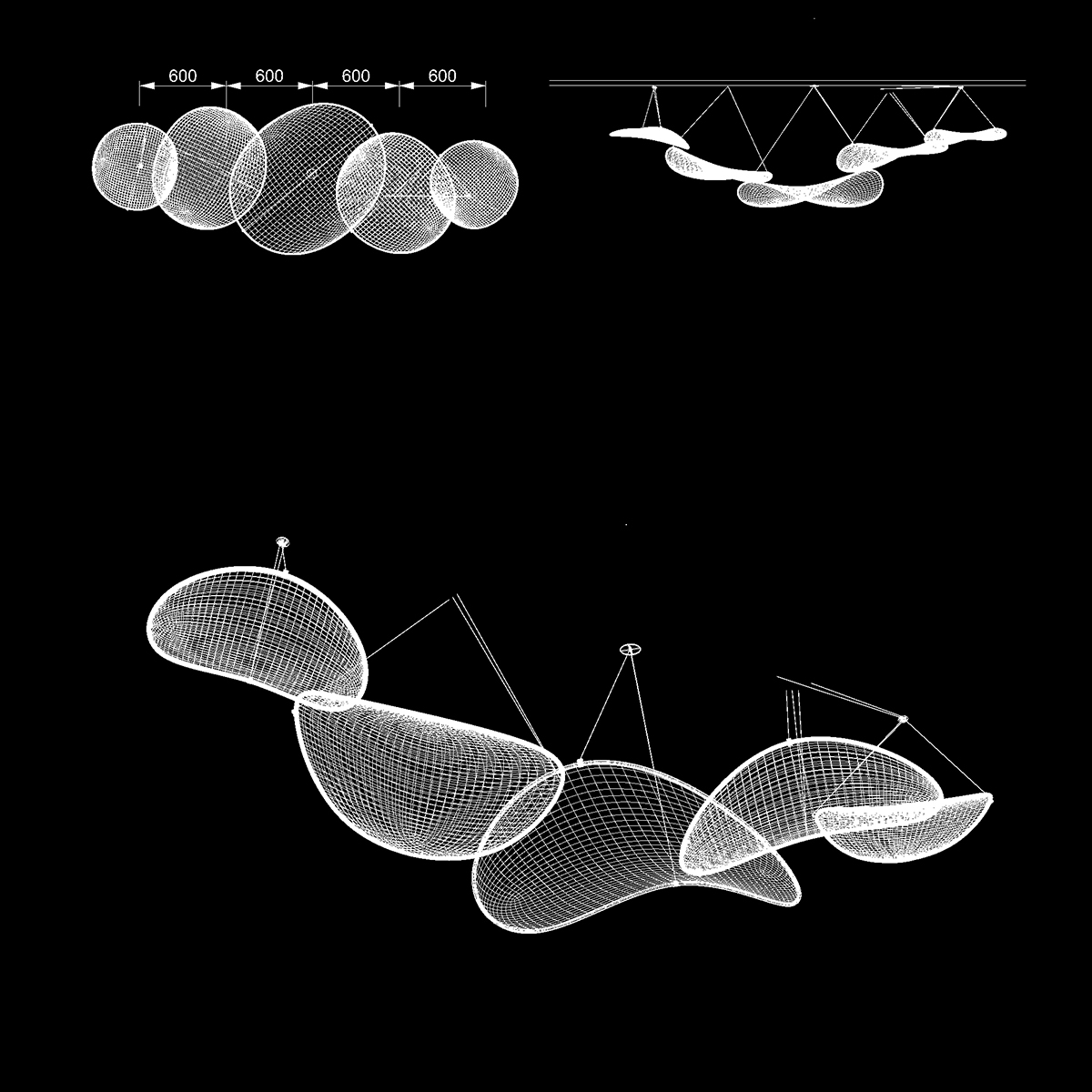

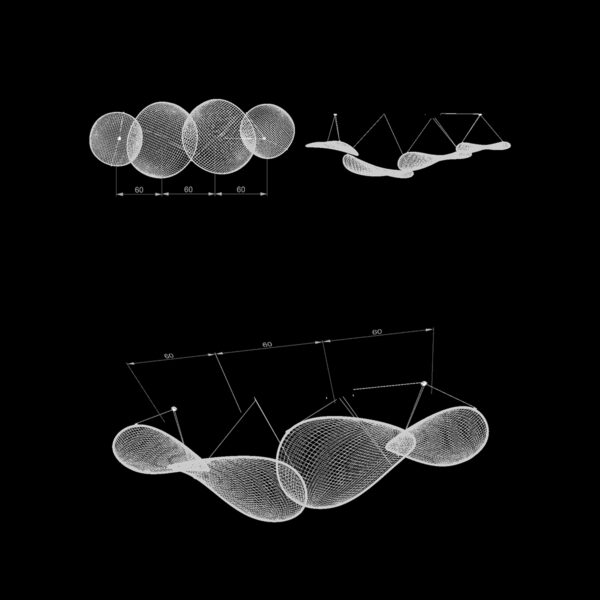

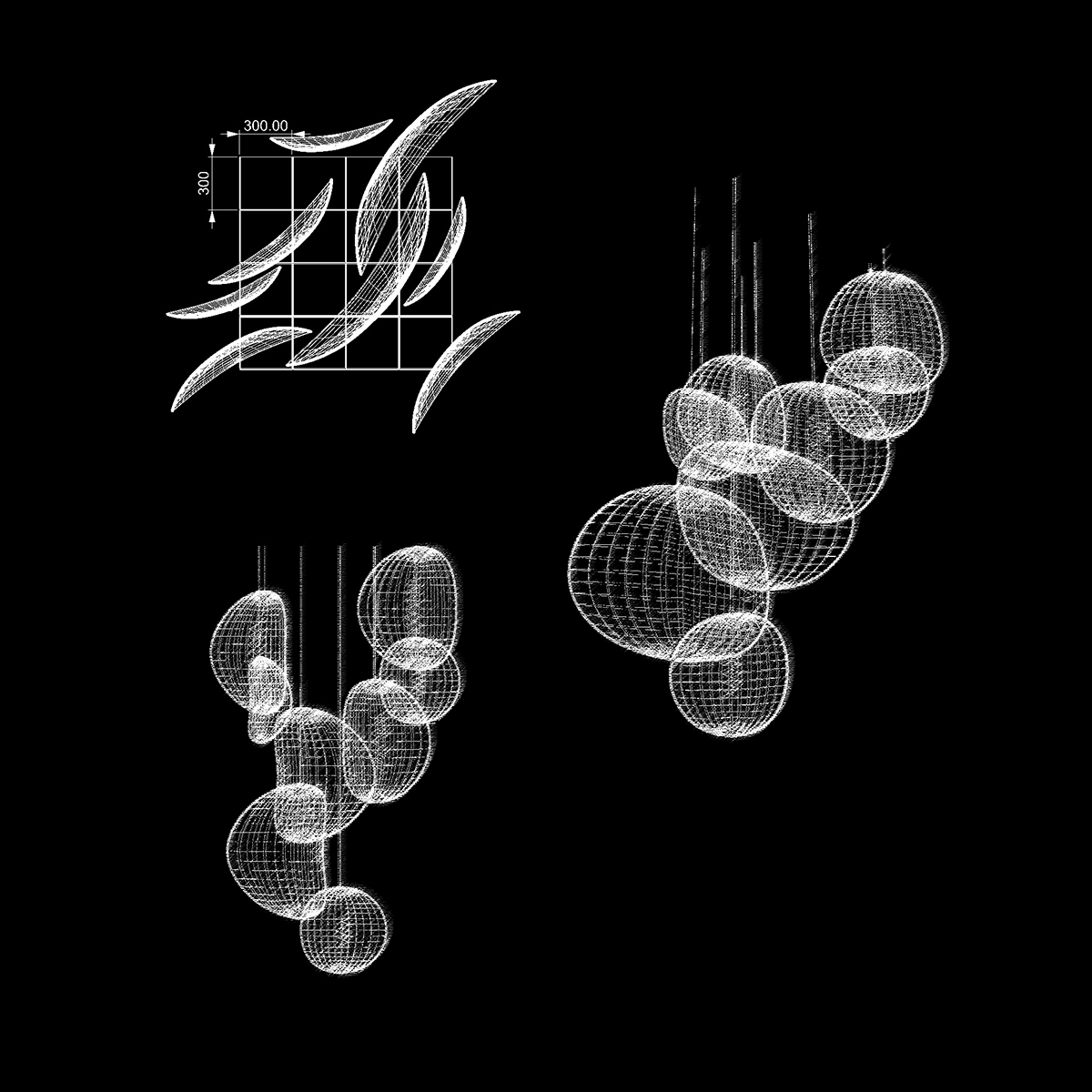

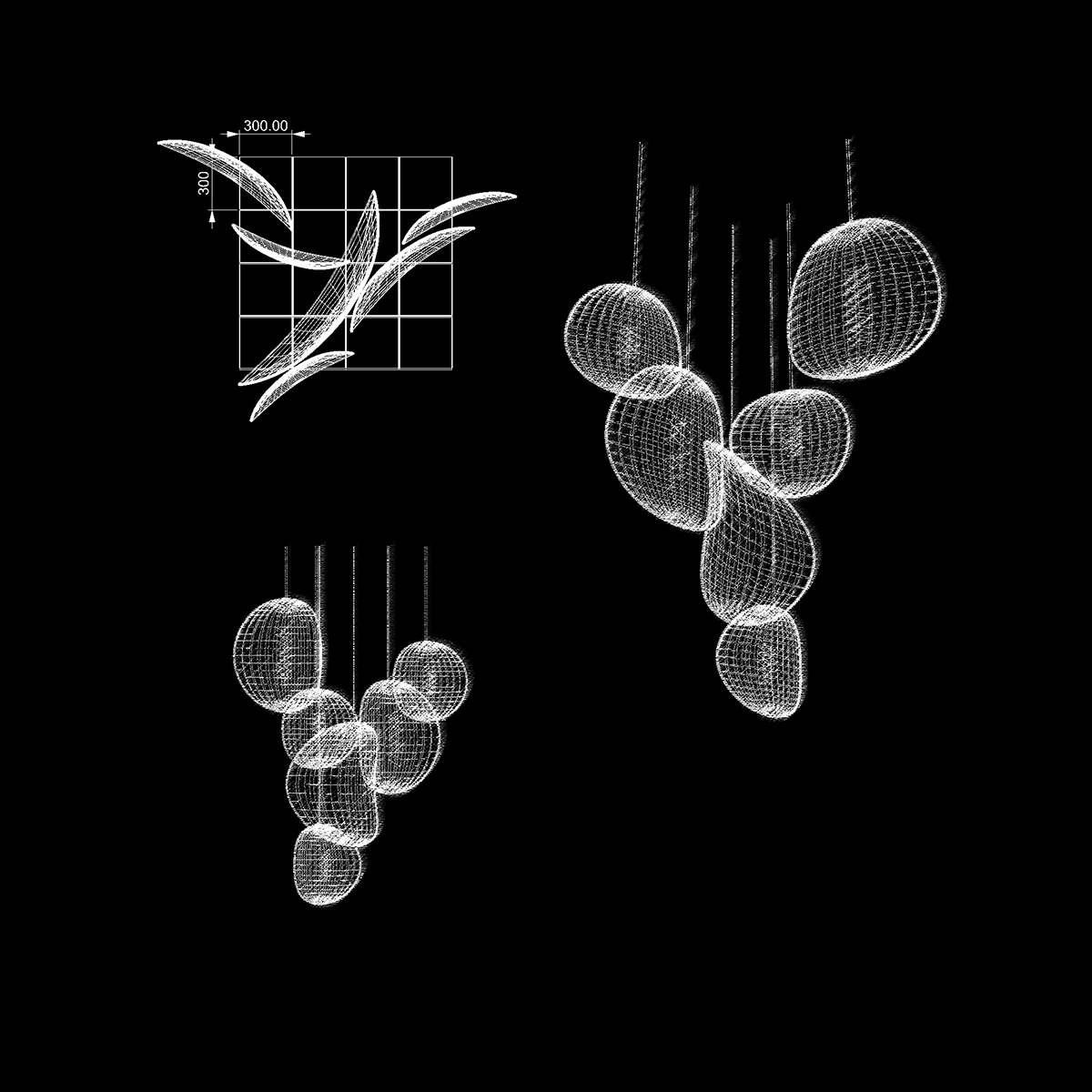

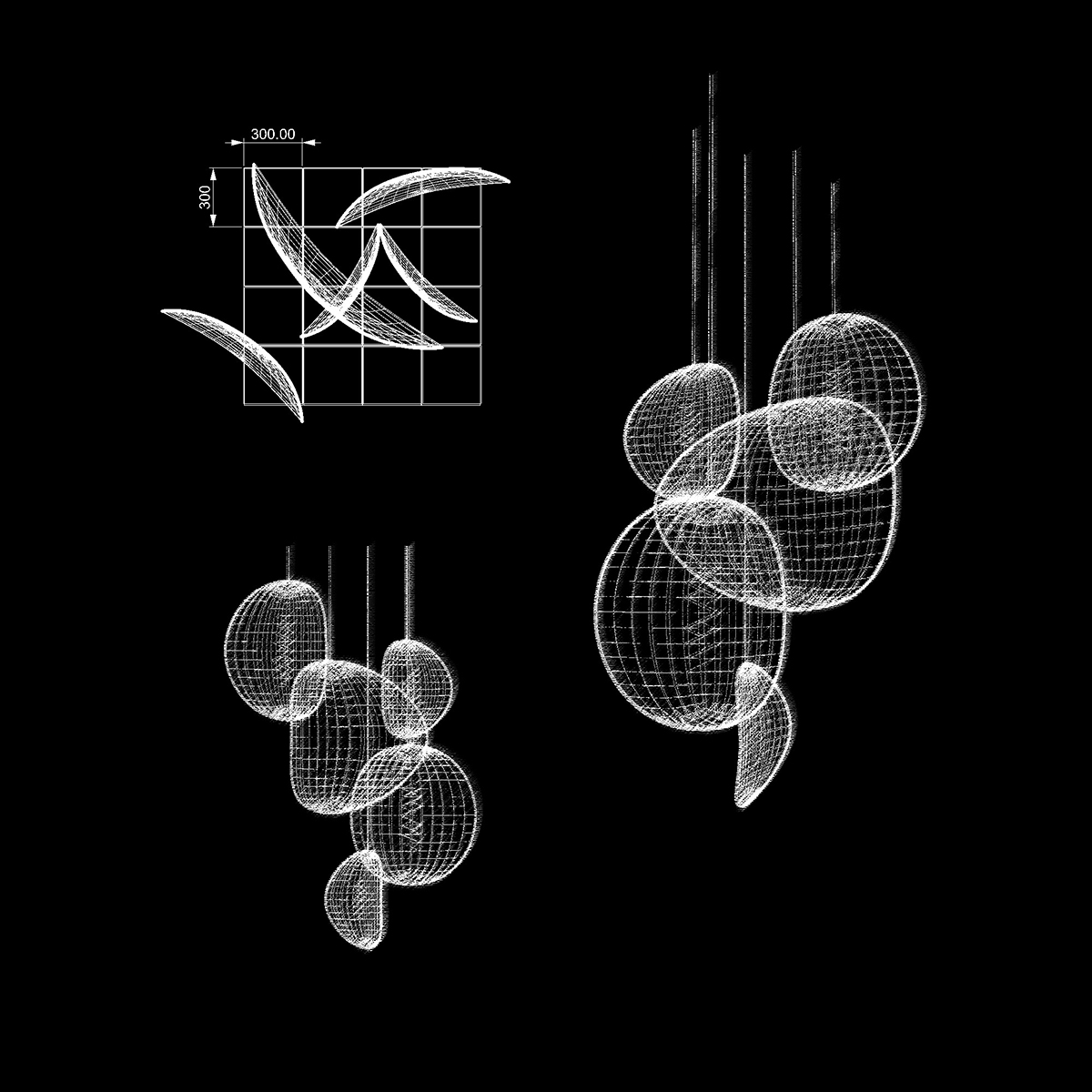

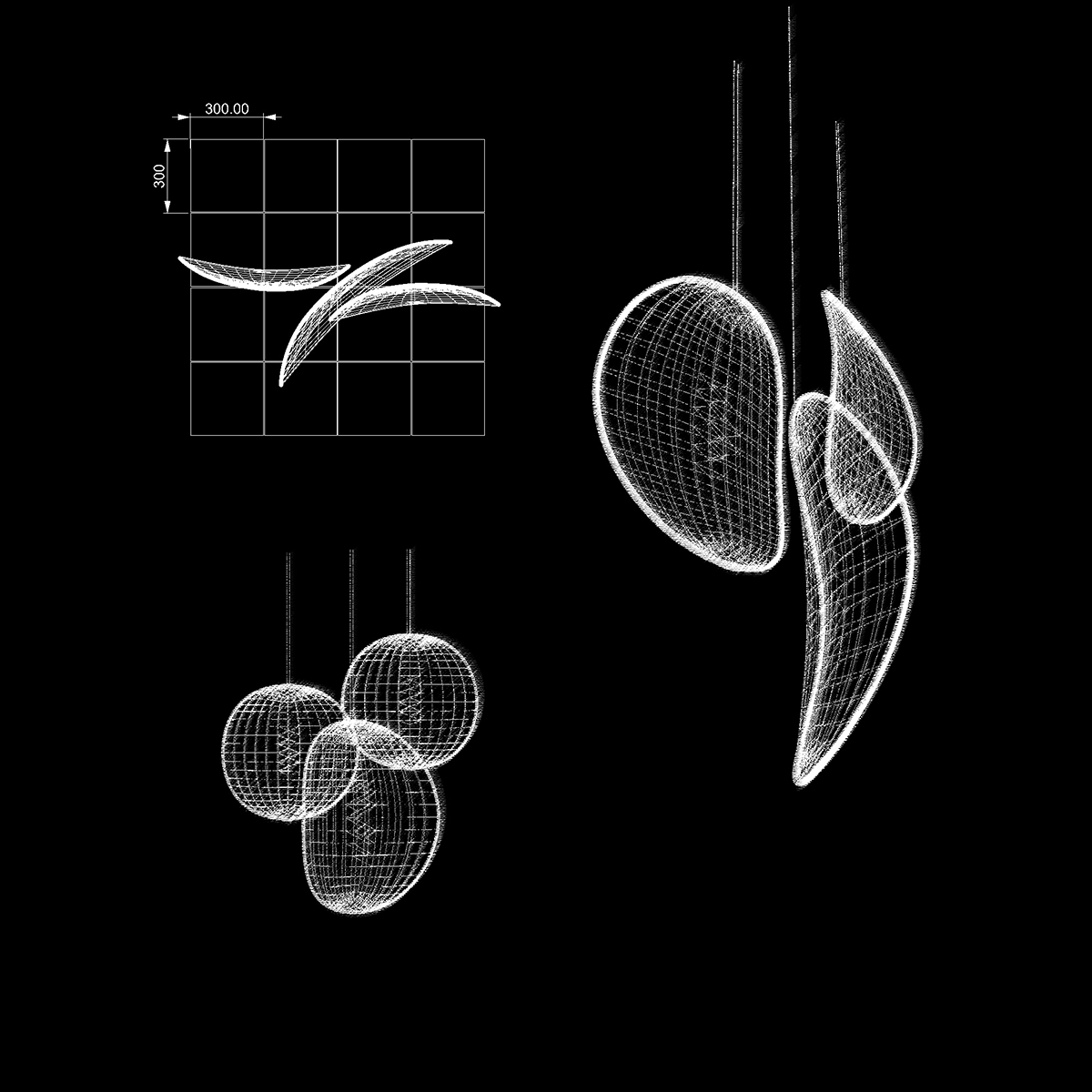

some compositions
- 2xllll.09.1
- 2xllll.09.3
- 1xllll.09.5
More about the fabric
The fabric is a knitted blend of half polyester half stainless steel.
The fabric options include a plain white/silver variant (right in the image above) or a with a golden sheen (left).
A warm white LED strip, embedded within the frame, lights the lamp from the edges, casting an even, soft radiance throughout.
The “white” fabric features a 2700K LED color, whereas the “gold” achieves its golden glow partially from the 2300K LEDs and partially from the fabric color.
The stainless steel ensures the fabric’s durability and ease of maintenance. Minor irregularities in the pattern and colour of the fabric are intrinsic to the knitting process.
The fabric can be cleaned with a vacuum cleaner and a mild textile cleaner.
Canopy or rosette?
All lights require a 24V DC constant voltage driver.
It can be installed either in a canopy on the ceiling or remotely.
The canopy may be white, black, or brass.
When multiple lamps are installed, this can be accomplished by having the power come from one central point or providing a separate connection for each lamp.

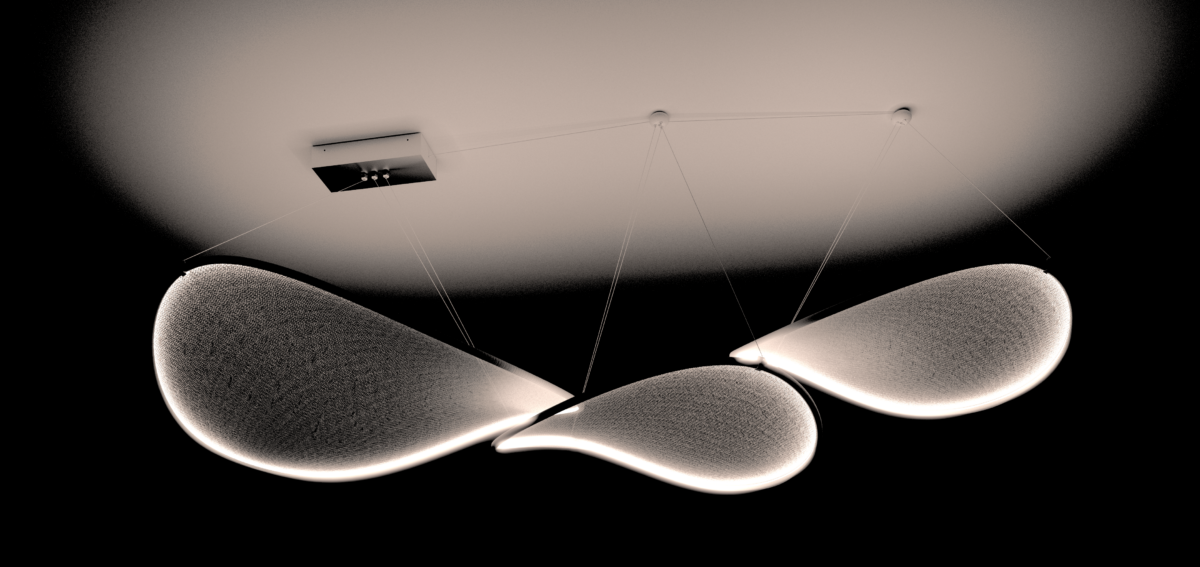

If each lamp requires a connection but the canopy cannot be placed remotely, you will need a canopy and driver for each lamp. If the driver can be remotely, a round ceiling rosette with cable gliders will suffice.
For a single power point you can use small ceiling attachments to position the lamps. The steel current-carrying cables will remain visible and can be joined either in the canopy or in the if the driver be placed remotely.

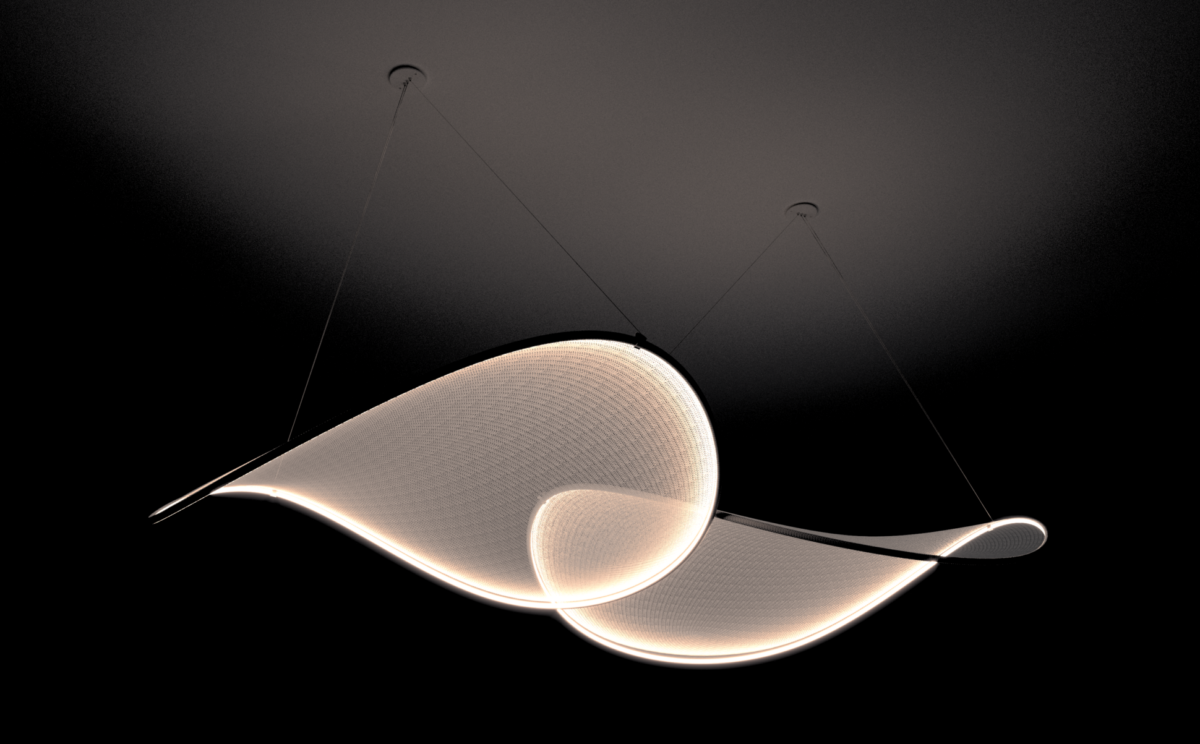

The lamps are suspended by a current-carrying coated steel cable. The length can be adjusted with the gliders, which are inserted in the canopy that holds driver or in the ceiling rosette.
